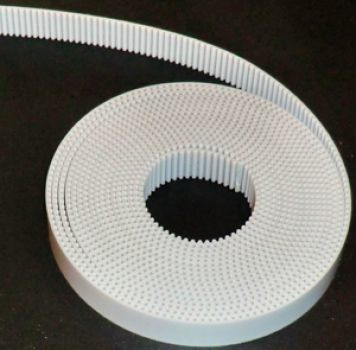

Profi - Toothed belt HTD-5M 25 mm sold by the meter in industrial quality - manufactured according to ISO 13050

• Optimal for micro step control - CNC machines
• The Polyurethane-toothed belt enables a wide range of customer-specific drive designs. From linear technology to individual transport solutions, power transmission, center distance bridging and gear ratio changes.
• The rounded / semicircular tooth profile increases the strength of the belt, ensure a quieter operation, a better grip on the belt pulley and for a longer lifetime.
• Steel tension cords are located in the toothed belt. As a result, toothed belts can transmit higher forces, are low stretch and suitable for precise controls.
• Reinforced design for high loads with low space requirements.
• Traction:  3M: 150N; 5M: 350N (permissible toothed belt tensile force with 10 mm belt width)
• The working temperature range is -20 to 80 °C

Technical specifications

• Profile: HDT-5M
• Type HTD-5M-Teilung 5 mm
• Width: 25 mm
• Maximum spin speed: 80 ms-1
• Maximum available length in one piece: 50 m

Advice for installation and use

• The toothed belts must be precisely aligned.
• Belt pretension is required.
• The belt tension must be adjusted (the circumferential force and the pretensioning force must not exceed the permissible belt tensile force)
• At least one toothed belt pulley must have flanged wheels.
• At least 6 teeth have to be in mesh.
• The toothed belt drives should not be lubricated.

* Quality product from the stockist *

* New and original packed up *



Scope of delivery: 1 m of  toothed belt with guarantee / invoice
                                 (the ordered quantity is delivered in one piece)
