Controller CNC Profi D2 , for band saws

It has been developed for the automatic cutting of band saws with material feed.

The controller has been designed and manufactured by CNC Profi to automate the production process.

CNC automation devices set a new quality on the market.

Easy to use, it is to be used for saws automation

Ability to make adjustments or changes without using a computer

All commands are entered via the keyboard

Allows direct switching of solenoid valves via the controller up to 10 connections 2A / 12-24 V

1st option : the material is fed to the stop at feed rate

2nd option : by reading from the glass dipstick , the material is fed exactly to the desired length

Automatic correction of the initial material

The work will be done in automatic mode "Auto

The programmes can be edited as required and stored in the "Edit" memory.

In manual mode, it is possible to work with a clamping device.

By pressing the keys "Start" / "STOP" from the keyboard or by external keys connected to the controller. These keys can also be used to start/stop the programme in automatic mode.

In manual mode, the opening or closing movement of the clamping device is actuated.

In manual mode, set the starting point of the machine to work, or set the coordinates to zero.

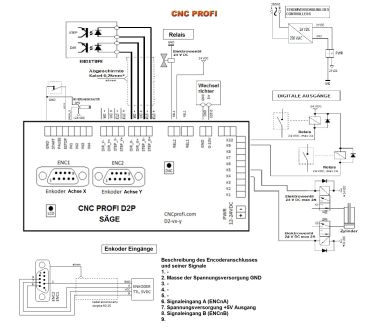

Technical data :

-supply voltage : 12-24 V DC current consumption : 50 mA max.

Controllable inputs :

-Number of inputs : 6 ; Opto Isolated , 5 to 24 V

-Inputs for : Limit switch , START , STOP , ESTOP , Reference , Opto Isolated

-10 outputs ( 2A / 12-2 4V ) direct switching of solenoid valves

-Scaled / analogue input signal ( 0 -10 V ) for frequency converter ( optional )

-Store up to 20 programmes with 50 tasks

-You can specify the number of programme repetitions or automatically continue from the beginning of the programme at the end of the programme.

- All parameters and settings can be set via the keyboard.

Key lock with password ( optional )

- Size : L - 180 mm , W - 44 mm , H - 92 mm

The controller allows the control of stepper motors or servo motors in the standard / step / direction / STEP / DIR . The maximum output frequency is 140 kHz for 1 axis and 80 kHz for the second axis , working simultaneously . Setting of acceleration (ramp) in the range from 0 to 200,000 pulses / sec ^ 2 . Setting without acceleration (ramp) is possible . The outputs are provided with a connection optoisolation for current input circuits .

- 2 programmable relays up to 3A

- Optional programming key lock with password



Link - Video -YuoTube - CNC Profi D2 - Controller


Functional description



 The controller is designed to automate the production process.


The work is carried out in the automatic mode "Auto


 Work paths are saved in the "Edit" program


 The manual mode (Manual) makes it possible to work with the "Start" / "Stop" keys of the keyboard


or with the external buttons connected to the controller, to move the motor


left / right


In manual mode, you set the starting point of the machine to work. Then the


coordinates are set to zero on the controller with the ( X ) key, press until it appears on the display and confirm


the display and confirm with "Enter" or enter the value and confirm with


( Enter ) , then set the automatic mode.




Select the programme number with the arrows on the display with "C" . Select the number


programme repetitions and press Enter, then press Start to start the programme.


start the programme


The programme can be interrupted and continued with the keys ( "STOP" / "START" )


or with the key ( Mode ) End / Cancel programme




 The controller has an "ESTOP" output for an external emergency stop switch, emergency stop stops.

.


If you press the emergency stop button and the coordinates have not changed, you can


continue the programme with the key ( "Start" ).



Delivery : 1 Controller CNC Profi D2 , for band saw with description , warranty and invoice
