Profi - AC - servo motors with control and output stage

• We offer top quality and a first class price / performance ratio for servo motors.
• Set- servo motor with control, output stage and connection cable.
• The servo drives have perfectly matched output stages ready for connection.
• The servo drives can be adapted for many different machines.
• The interactive many ensures a simple condition.
• Upon request, we will select and adapt the output stages and drives for the selected application free of charge.
• The control works with step/direction signals.
• Logic TTL compatible (5Volt)
• Problem-free cooperation with many CNC programs e.g. Mach 2/3.
• Optionally with integrated braking resistor and fan for cooling.
• The power supply has 3 phases: 220V AC or 1 phase: 220V AC - no additional transformer required.
• The servomotors use brushless servo drives with alternating current.
• Our servo motors are equipped with an encoder and analyze the difference between the setpoint and the executed position.
• The controller tries to steer the motor so that it reaches the set position. If he is unable to reach the position, it stops the motor and sounds the alarm.
• There are no step losses.
• The motors have a high positioning accuracy.
• The output stage has an encoder control, which is defined by step monitoring and precise positioning.
• The output stage is also equipped with over current protection, overvoltage protection and position error control.
• The output stages and servomotors are characterized by their smooth running.
• When selecting the overall system, we support you with hardware, software and even a complete system solution. Of course, always with the support of experienced technicians.

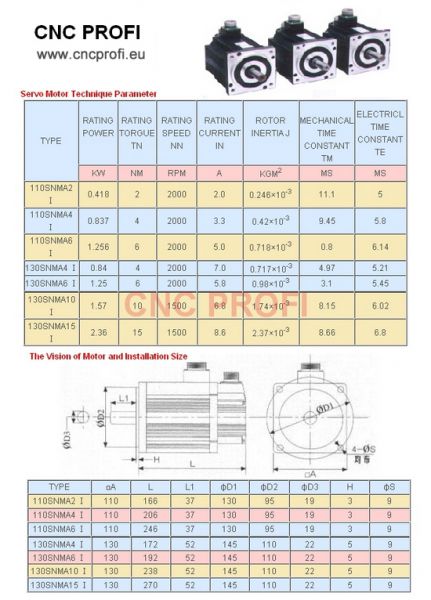

Technical specifications

• Moment: 15 Nm
• Current: 8,6 A
• Power: 2360 W
• Speed: 1500 RPM
• Shaft diameter Fi: 22 mm
• Dimensions: Fl.: 130x130 L: 262 fi: 110 mm
• Weight: 27 kg
• Encoder resolution: 2500 rpm
• Speed fluctuations under normal load <±0,03
• Maximum positioning pulse frequency 500 kHz
• Maximum current: 20 A
• Acceleration 0-1000 RPM configurable from 1 to 10000 ms
• Speed can be scaled with the fraction 1~32767/1~32767

* Quality product from the stockist *

* New and original packed up *

 If you have any further questions about the product, simply send us an e-mail at info@cncprofi.eu or by phone 030 4942661.
We will gladly answer them for you.

Scope of delivery: 1 Set - servo motor AC, 15 Nm 8,6 A, control with 3m cable
with data sheet and pin assignment - description
with guarantee / invoice
